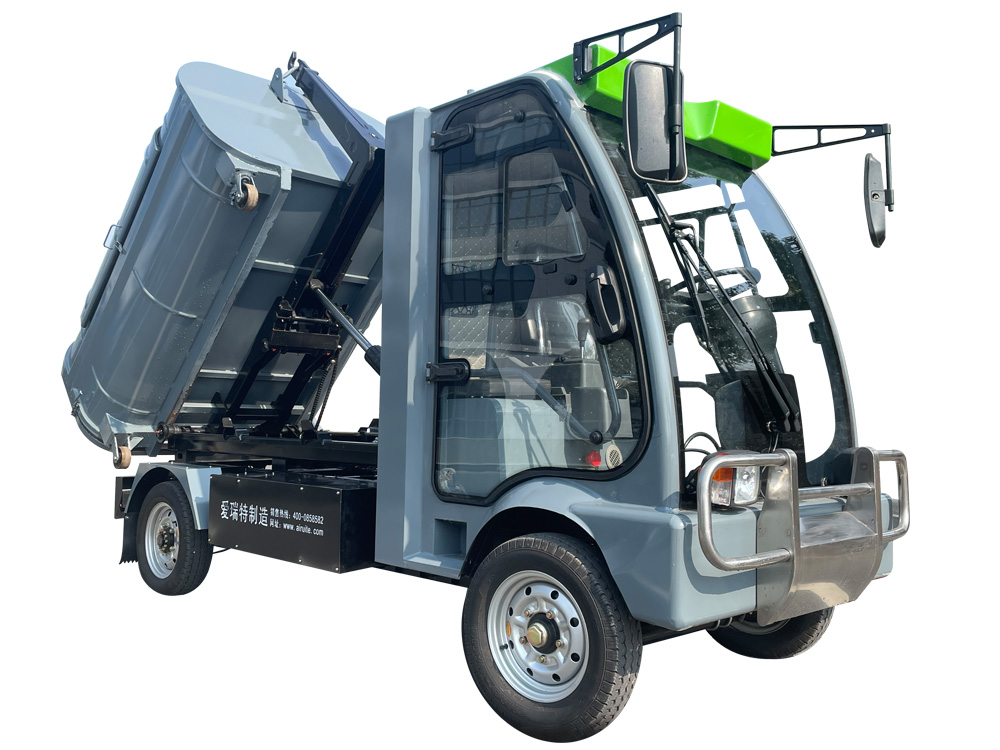

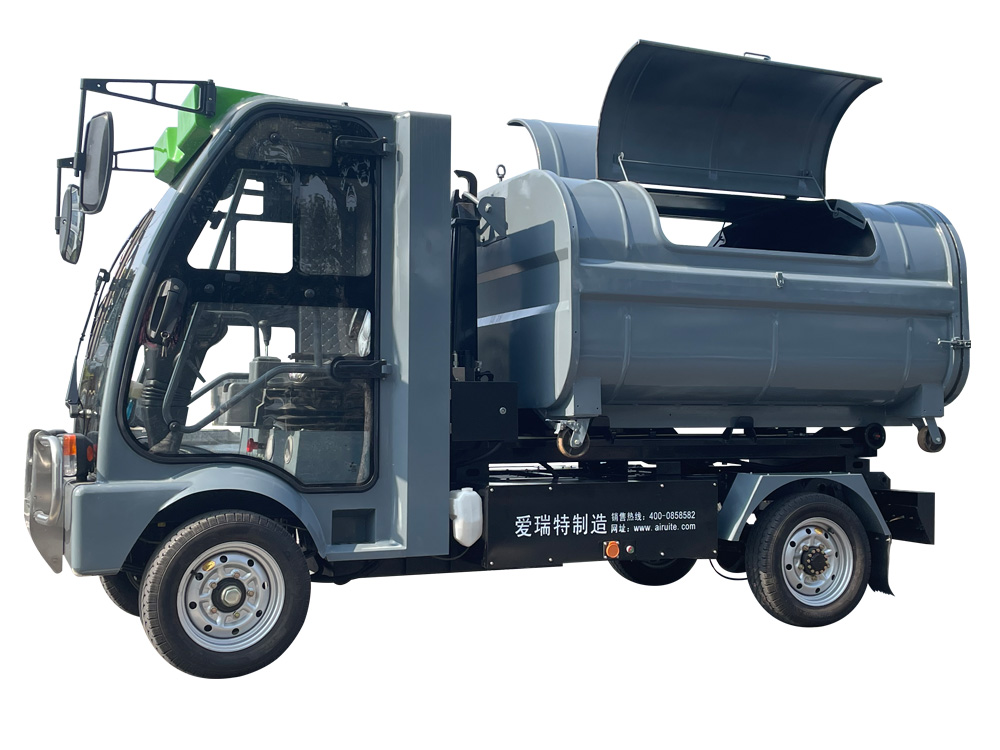

Ruibao Y41 pure electric garbage truck is mainly applicable to the collection and transportation of domestic garbage cans placed in urban living quarters or streets. It can dock with other large and medium-sized garbage compression vehicles (standard type) for unloading. It is pure electric operation with low cost and zero emission.
★ chassis: steel structure welded chassis, high-strength square steel welded, high-quality carbon steel, electrophoretic anti rust treatment; High strength and corrosion resistance;
★ body: fully enclosed cab, fully transparent glass on three sides, front stainless steel bumper, high-quality high-strength metal body, good line of sight, safe and beautiful;
★ drive: electric differential rear axle drive, stepless speed change;
★ battery: 12 *6v/200ah maintenance free lead-acid batteries and 72v/250ah lithium iron phosphate battery packs are optional;
Serial number | entry name | Company | parameter |
1 | Voltage / drive power | v/hw | 72/7.5 |
2 | ★Endurance mileage | km | ≥100 |
3 | ★Box volume | m3 | 2.5 |
4 | Rated load | kg | 760 |
5 | Maximum travel speed | km/h | 35 |
6 | braking distance | m | ≤4 |
7 | Gradeability | % | ≥30 |
8 | Turning radius | m | ≤5 |
9 | Overall dimension | mm | 3900*1600*2040 |
10 | Total mass | kg | 2500 |
11 | curb weight | kg | 1600 |
